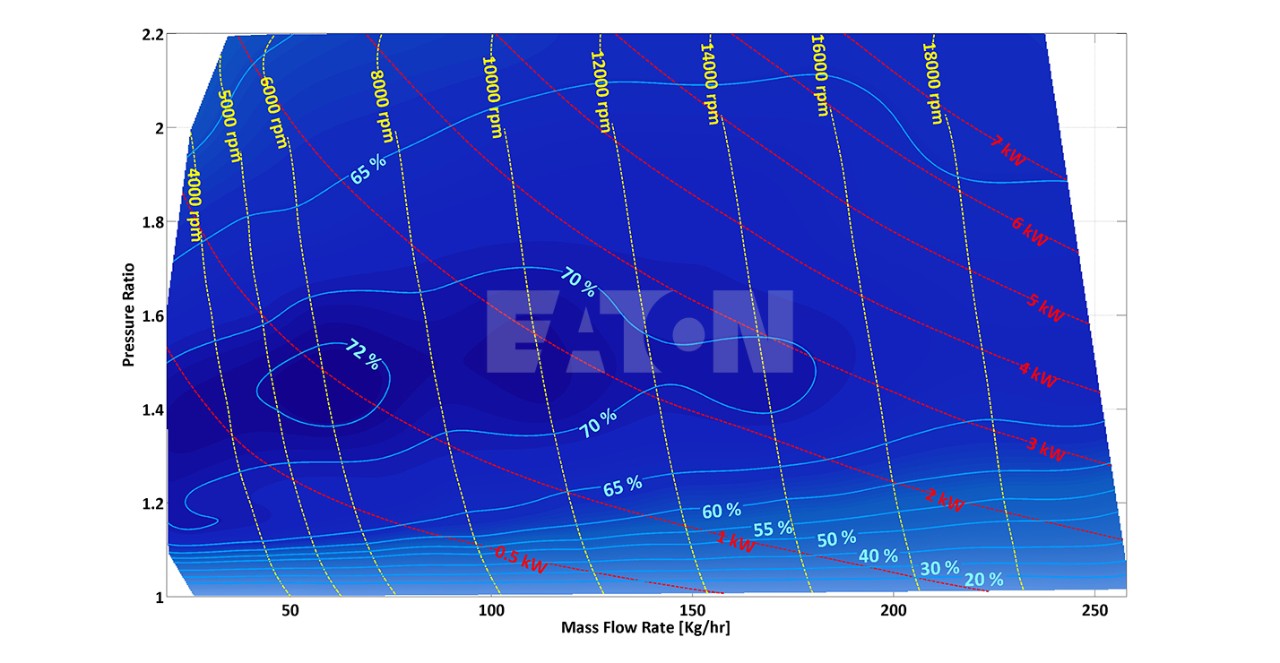

With a typical max operating speed of 18,000 rpm and a peak pressure ratio of 1.8, the V180 is able to deliver 217.4 kg/hr of airflow (corrected to 100kPa and 25 degree Celsius inlet conditions). Please inquire regarding higher speed/flow and pressure ratio capabilities and sample availability.

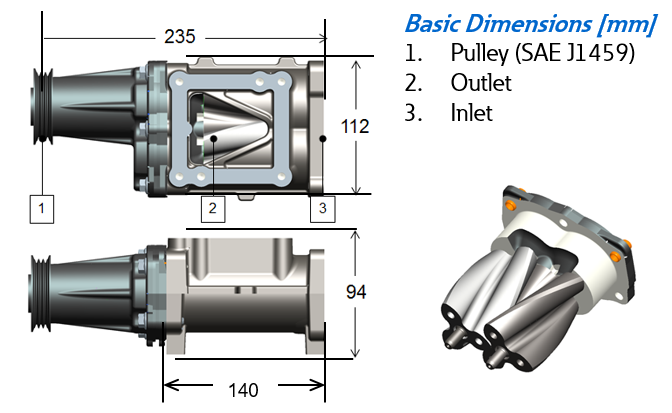

Generic representation of packaging for size comparison. Please contact Eaton regarding your specific application needs.
| Optional features | Availability |
|---|---|
| High inlet pressure seals | All |
| Packaging flexibility | All |
| Integrated bypass | All |
| Air Management System (AMS) - including mounting provisions for sensors and actuators | All |
| Alternate mounting orientations | All |
| 2:1 internal step-up drive | All |
| Compatibility for various environmental conditions | All |
